Designing light systems for business parking lots requires exact building measurements and light calculations. Most normal business lots use light poles that stand 20 to 25 feet tall. Engineers space these poles at 2 to 3 times their height, putting them 50 to 70 feet apart. Based on IES RP-20 rules, standard parking areas need a light level of 1.0 to 2.0 fc with a 4:1 balance ratio.
Strong commercial steel offers great resistance against strong winds and creates sturdy structures. Morelux is a reliable maker that offers custom designs and hot-dip galvanizing to prevent rust. Morelux provides top-quality steel Light Poles that meet international BS EN 40 and AASHTO LRFD safety rules.
Key Takeaways
- Pick 20 to 25 foot poles to spread light evenly without blinding drivers.
- Space light poles 2 to 3 times their height to remove dark spots.
- Choose high-strength steel poles to resist strong winds and heavy weather.
- Use hot-dip galvanizing and powder coating to stop rust and cut maintenance costs.
Steel Light Poles Designed for Parking Lot Projects
Planning business property layouts takes careful technical work to keep areas safe and easy to see. Picking the right size light poles helps spread light evenly across driveways, walkways, and parking spots. Project planners and engineers must check the total lot size, traffic amounts, and light fixture strength before picking outdoor poles.
Regular business properties get great results when you pick the correct pole height. Light poles that stand 20 to 25 feet high spread light best for standard business parking lots. This normal height places light fixtures high above the vision line of drivers. As a result, it stops blinding glare while spreading light smoothly across several rows of cars. Huge industrial sites, shipping yards, and logistics centers often need 30-foot poles. Taller pole heights let large facilities light up huge paved areas well, while keeping ground spaces clear for big trucks.
Engineers use standard spacing math to figure out the exact distances between poles on a job site. The basic rule is to space poles 2 to 3 times their height. Following this proven formula removes dangerous dark spots between lights. It also keeps lighting levels even across the whole parking lot. For instance, systems with 20-foot poles overlap light smoothly when placed 30 to 40 feet apart. Good spacing stops dark shadows around parked cars, gives drivers time to react, stops crime, and keeps visitors safe.
| Parameter | Recommended Specification |
|---|---|
| Mounting Height | 20 to 25 feet |
| Pole Spacing | 30 to 40 feet |
Picking strong pole materials is key for long-term lot safety and good performance. High-strength steel Light Poles offer great structural strength and handle strong winds well in busy business spots. Morelux is a top manufacturer and global supplier that makes custom steel poles for tough business job requirements. The company builds different pole shapes that resist harsh weather without losing their strength or good looks.
Commercial builders and city buyers often need custom pole changes to meet special local weather and wind conditions. Morelux offers full custom design services for special building jobs. Engineers can choose custom steel thickness, strong base plates, extra handhole support, and special mounting arms. These custom choices help electrician crews install poles easily while keeping them steady during high winds. Smart design stops steel damage caused by wind shake over many years. Also, well-made steel shafts hold different fixture weights without bending.
Creating even lighting lowers energy bills and long-term building costs. Planning teams avoid buying extra fixtures by pairing the right pole height with correct spacing formulas. Properly planned layouts hit target light levels without wasting power or letting extra light shine onto nearby properties. Trusted partners like Morelux help project managers at every step, offering certified steel Light Poles made for long life, easy care, and total structural safety. Partnering with a skilled global maker keeps your job compliant from initial designs to final delivery. Property owners get reliable outdoor performance by choosing certified steel parts built for severe weather.
Advantages of Steel Light Poles for Parking Lots
Business properties need tough outdoor lighting systems that last. High-strength steel Light Poles offer great support for heavy lights in busy areas. Picking the right pole shape boosts safety and helps lower wind resistance in all kinds of bad weather.
A square steel pole gives a trendy look that works well in parking lots. However, a round tapered steel pole handles strong winds better because its smooth shape easily cuts down on wind push and stress.
High Strength Steel Construction for Outdoor Applications
Engineers pick specific pole shapes to handle heavy weight and match site designs:
- Tapered conical designs cut wind push the most, lowering wind resistance by about 30% compared to straight poles.
- Octagonal profiles made with sharp bends offer 15-20% more twist and bend strength than round poles with equal metal thickness.
- Hexagonal and square shafts add neat design lines for stylish business spots while easily holding several light brackets.
- Conical profiles rely on simple factory methods, making them the cheapest shape to produce among normal pole styles.
As a trusted global supplier, Morelux uses modern bending and spinning machines to build strong custom poles that easily stand up to powerful local wind storms.
Powder Coating Protection Against Weather and Corrosion
Outdoor steel needs strong surface protection to stop weather damage, rust, and sun damage. Quality finish options shield the strong metal frame while keeping a clean appearance through decades of outdoor use.
| System | Corrosion Protection | Outdoor Durability (Years) | Maintenance Needs | Best For Environment |
|---|---|---|---|---|
| Hot-Dip Galvanizing (HDG) Only | Good | 20-40 (C4), 10-20 (C5) | Low; simple inspections every ~2 years | Urban, moderate coastal (C4) |
| Powder Coating Only | Poor | 5-10 | High; prone to early failure and costly repairs | Mild climates only |
| Duplex System (HDG + Powder Coating) | Excellent | 25-50 | Very Low; minimal maintenance | Coastal, marine, industrial, harsh environments |
Factory powder coatings stick tightly to metal surfaces, making a seal that blocks water from getting inside. These tough plastic layers stop fading, cracking, chalking, and peeling under constant harsh sunlight. For harsh industrial or beach areas, putting powder coating over hot-dip galvanized steel gives your poles the strongest total protection.
Reliable Performance With Low Maintenance Requirements
Business parking lot jobs compare starting building costs with long-term care needs. Galvanized and powder-coated steel light poles offer a low initial cost of $1,000 to $2,000 for each setup.
Normal steel shafts usually last 20 to 30 years when cared for properly. Regular maintenance means checking the frame and fixing small coating spots, costing over $300 in care costs over 10 years.
Morelux runs a big 45,000 square meter factory backed by over 15 years of manufacturing experience. The company provides custom OEM engineering, full safety tests, and large wholesale orders for global builders and city suppliers. Choosing the right pole shape with factory coatings keeps long-term costs low, gives strong frame support, and guarantees dependable performance in busy parking lots.
Applications of Parking Lot Light Pole Solutions
Steel Light Poles for Commercial Parking Areas
Anchor-base steel Light Poles keep busy business lots safe and steady for many years. Workers use strong steel patterns to line up anchor bolts, lock steel rebar cages, and pour deep concrete bases. A normal 30-foot commercial pole needs a concrete base that is 18 to 24 inches wide and 4 to 5 feet deep. The poured concrete must reach a strong firmness rating of 3,000 to 4,000 psi.
Mounting poles on base plates lets property managers swap damaged units quickly without digging up the dirt. Power wires run safely through PVC Schedule 40 pipes buried 24 inches deep beneath driveways.
Steel Light Poles for Public and Institutional Parking Areas
Public places like schools and hospitals care deeply about saving power and keeping guests safe. Lighting plans place warm 3000K lights near walking paths and clear 5000K lights beside driving lanes.
Energy rules demand automatic light controls on poles reaching up to 24 feet high. These smart units must cut lamp power by half when areas stay quiet for 15 minutes. Simple timer switches provide weekly settings to run regular lighting schedules without extra work.
Steel Light Poles for Industrial and Large Parking Facilities

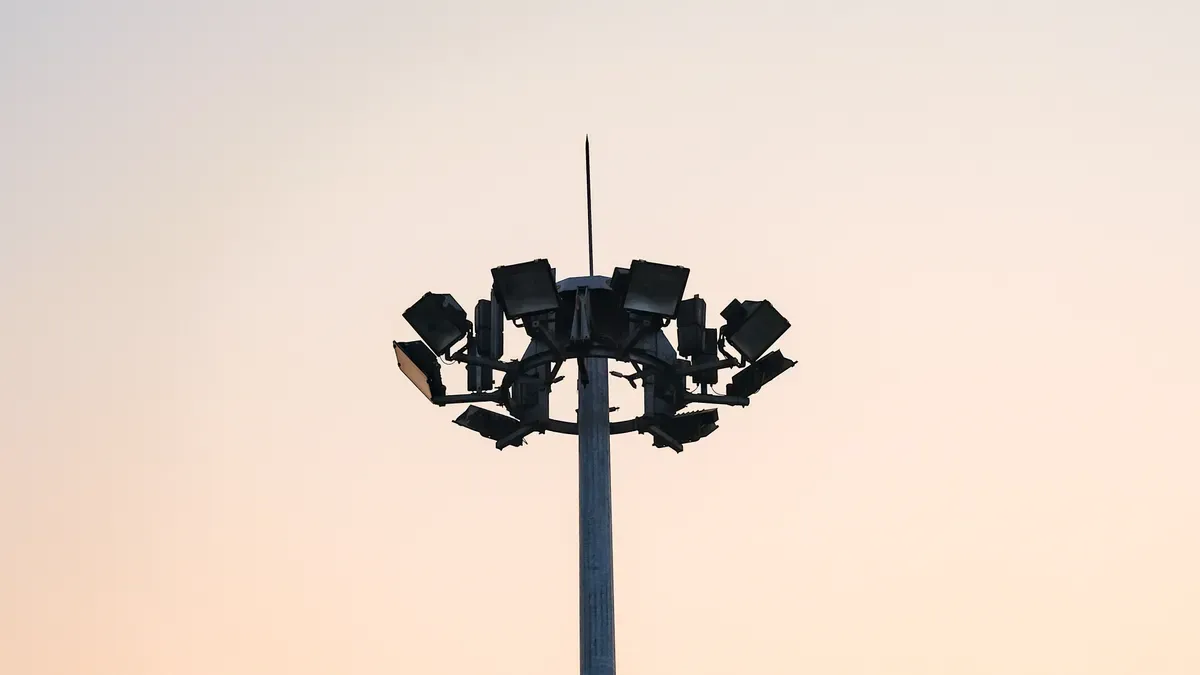

Large factories and shipping hubs use super tall high-mast steel Light Poles standing 15 to 55 meters high. These massive steel structures brighten huge cargo yards and busy truck terminals evenly.
Under strict CIE 169 rules, crowded shipping ports need a bright light level of 30 to 50 lux. Normal industrial parking spaces follow IES RP-20 rules, aiming for 10 to 20 lux for safe driving. Engineers plan concrete pad bases by making their total depth about one-sixth of the pole height.
Our Steel Parking Lot Light Pole Design Options
Choosing pole styles means matching your site details with local wind maps and global safety rules like AASHTO LRFD, BS EN 40, and AS/NZS codes. Morelux supplies custom engineered choices made for every business setup.
Different Pole Heights for Various Parking Applications
Engineers pick exact pole heights to fit site traffic needs and stop blinding glare.
| Parking Lot Type | Height Range | Primary Function |
|---|---|---|
| Pedestrian Areas & Compact Cars | 12 to 24 ft | Minimizes glare for drivers and illuminates walking paths. |
| General Commercial | 16 to 25 ft | Balances light coverage for drive aisles and parking rows. |
| Industrial & Large Trucks | 25 to 40 ft | Reduces shadows from stacked cargo and tall vehicles. |
Single Arm and Double Arm Lighting Pole Configurations
Arm setups directly change the total Effective Projected Area (EPA). Engineers figure out total EPA with a simple math formula: total EPA equals fixture EPA plus bracket EPA plus extra part EPA.
The full weight and total EPA must match regional wind speed maps published by AASHTO. Double arm setups mount light fixtures across from each other, spreading light smoothly over two lanes while balancing sideways wind push on the main shaft.
Anchor Base and Direct Burial Steel Pole Options
Direct burial setups follow a simple building rule. Workers bury 10% of the planned height plus 2 feet, meaning a 24-foot pole sets a 20-foot light height.
On the other hand, anchor base setups lock onto concrete pads using sunken steel bolts. Business managers pick anchor base steel Light Poles for commercial sites because workers quickly unbolt broken poles without digging up concrete bases.
LED Lighting Performance for Safe and Efficient Parking Areas
The U.S. Department of Energy’s solid-state lighting research confirms these substantial energy savings, documenting that LED outdoor lighting systems consistently outperform traditional HID technologies.
Swapping 400W metal halide bulbs for 150-250W LED lights cuts power use by 50-80%. LEDs last between 25,000 and 50,000+ hours. Quick start times and clear light colors help security cameras show sharp images. As a global supplier, Morelux sells complete wholesale pole systems built to save as much power as possible.
Choosing the Right Steel Parking Lot Light Poles
Consider Height Wind Load and Installation Conditions
Picking proper mounting heights relies on parking sizes, driving traffic, and target light needs. Small store lots, walkways, and footpaths work best with 15-20 foot poles. Shorter shafts provide 12,000-18,000 lumens across 20-30 foot gaps to stop blinding glare. Medium business sites need 20-25 foot heights set 30-40 feet apart to cast 20,000-30,000 lumens smoothly. Tall 25-35 foot posts space units 40-50 feet apart while spreading 30,000-70,000 lumens over wide campuses and train stations. Taller posts improve overall system output, reducing total required poles across large properties.
Designers check local wind speeds and outdoor open space levels using detailed Effective Projected Area charts and regional wind speed maps. Powerful wind pushes make tall outdoor posts twist or tilt. Flat square shafts take on more wind drag than smooth round poles during bad storms. Tapered round poles lower total wind resistance much better than straight round posts. Heavy snow accumulation and attached lamp weights put extra physical strain on long metal shafts. For long-term safety, Morelux makes custom steel Light Poles that match tough AASHTO structural rules in windy zones.
| Mounting Height | Recommended Spacing | Typical Lumens Range |
|---|---|---|
| 15’-20’ | 20’-30’ | 12,000-18,000 |
| 20’-25’ | 30’-40’ | 20,000-30,000 |
| 25’-35’ | 40’-50’ | 30,000-70,000 |
Ground base plans and setup choices depend on local soil strength, weather exposure, and weight limits. Anchor base setups hold steel shafts on concrete pads using strong steel bolts. This standard building style allows fast fixes if cars hit the post. Direct burial methods place extra post lengths deep underground, securing bases with packed dirt backfill. As a top maker and global supply company, Morelux builds custom wholesale poles to match tricky job sites, special concrete bases, and severe weather.
Our Steel Light Pole Solutions for Parking Lots
Customized Designs Based on Project Requirements
Morelux operates a modern 45,000 square meter factory backed by over 15 years of solid manufacturing work. Our engineering division features more than 200 skilled professionals who build precise steel parts. We create custom steel light poles for complex commercial, city, and factory lighting projects around the world. Builders can pick custom shapes, including square, round, tubular, tapered, octagonal, hexagonal, straight, or curved styles. Each custom style fits exact property layouts, local wind speeds, and specific job needs. Our engineering team provides full technical assistance, including custom design plans, wind load reviews, and strength tests.
Every commercial site needs special building choices to ensure property safety and long-term performance. Our advanced factory handles all production steps inside the plant, including cutting raw metal, bending, metal spinning, automatic welding, polishing, powder coating, and anodizing. Structural engineers easily set up single arm or double arm light brackets to match specific lighting goals. We build all custom pole systems to follow strict global building rules, such as BS EN 40, AASHTO LRFD, AS/NZS, and MS specifications. These proven building steps guarantee top structural strength during severe storm conditions.
We offer flexible surface protection options to shield strong metal shafts from harsh outdoor rust. Customers can pick hot-dip galvanizing, quality powder coatings, painted finishes, or protective duplex coating systems. These protective finishes seal raw metal surfaces against rainwater, salty beach air, and harsh industrial chemical spray. As a global wholesale supplier and direct maker, Morelux provides complete custom OEM orders for major building partners. Our custom steel Light Poles deliver long service life, quick jobsite assembly, and reliable performance across large business developments.
Working directly with a skilled global maker simplifies product buying while lowering total building care costs. Our team guides international clients from early structural planning all the way through final factory shipping. Choosing certified custom poles guarantees lasting safety and great performance for commercial properties.
Frequently Asked Questions About Parking Lot Light Poles
Why Are Steel Poles Used for Parking Lot Lighting?
Engineers select steel posts built to strict safety rules. Steel holds its shape much better than lighter metals like aluminum. This strong structure stops dangerous shaking during heavy wind storms. Smooth, tapered steel shafts resist bending and heat damage over time. Therefore, property managers pick high-strength steel to keep outdoor areas safe.
What Height Is Best for Parking Lot Light Poles?
Property sizes help owners pick the correct light height:
- Small spaces like retail shops and apartment buildings use 12 to 20 feet.
- Medium areas such as shopping centers and schools need 20 to 25 feet.
- Large sites including factories and malls rely on 25 to 35 feet or higher.
Choosing proper pole heights ensures even lighting across driveways and parking spots.
How Long Do Steel Parking Lot Light Poles Last?
Protected steel posts easily endure harsh outdoor weather for many decades. Adding powder paint over hot-dip galvanizing gives poles double surface defense. This strong combo blocks rust for 40 to 60 years in normal weather conditions. Deep zinc coatings continuously shield raw metal if small scratches appear on top.
What Are the Benefits of Powder Coated Steel Poles?
Powder coatings seal out wet moisture while keeping color finishes looking fresh and bright. Tough plastic powders hold vibrant colors without fading for 7 to 10 years. Special advanced coatings protect colors even longer, lasting 15 to 25 full years. Powder-coated posts need far fewer fresh paint jobs than regular liquid paint finishes.
Should Parking Lot Poles Use Anchor Base or Direct Burial?
Business projects prefer anchor bases over burying poles straight down into raw dirt. Direct burial places bare metal against wet soil, creating fast rust damage. Anchor base plates raise strong steel posts safely above damp ground levels. Repair crews quickly unbolt base plates to swap broken shafts without digging deep holes. Direct maker Morelux builds custom wholesale anchor base systems for major business projects.
Choosing the right parking lot light poles requires accurate height selection, precise spacing, and proper foundation installation. Facility managers must review essential technical factors before purchasing equipment.
| Essential Requirement | Associated Pre-Procurement/Installation Step |
|---|---|
| Soil Testing & Foundation Integrity | Conduct soil analysis to determine direct burial or concrete foundation type. |
| Wind Load Verification | Calculate fixture EPA against local wind speed maps and pole height specs. |
| Zoning & Code Compliance | Research local building codes for height limits, spacing, and structural standards. |
Consult experienced lighting engineers and leverage Morelux technical support for custom wind load analysis, OEM design flexibility, and certified steel pole production for your project.
