A square steel pole is a steel structural element. Its cross‑section forms a square. You can get it as a hollow tube. Manufacturers make it from carbon steel or galvanized steel. This material gives it strength and durability. Builders use a square steel pole in construction, fencing, signage, and lighting. The flat sides make mounting easy. This simple design suits many outdoor jobs.
Key Takeaways
- Square steel poles have flat sides. This makes mounting lights, signs, and cameras easy and secure.
- These poles resist twisting and bending. They work well in high winds and heavy loads.
- Galvanizing protects steel from rust. It helps poles last 30 to 50 years or more outdoors.
- Choose the right steel grade and size. This ensures safety and saves money on your project.
- Square poles are strong and cost less than round poles. They are great for parking lots, streets, and security systems.
What Is a Square Pole and How Is It Structured?
Four-Sided Steel Construction Defines the Square Pole Profile
Most square steel poles are made from weldable carbon steel tubing using cold roll-forming or press brake methods. ASTM A500 is commonly used for cold-formed welded and seamless carbon steel structural tubing, with Grade B and Grade C among the common options.
| Property | Grade B | Grade C |
|---|---|---|
| Tensile strength, min. | 58,000 psi (400 MPa) | 62,000 psi (427 MPa) |
| Yield strength, min. | 46,000 psi (317 MPa) | 50,000 psi (345 MPa) |
| Elongation in 2 in. (50.8 mm), min. | 23% | 21% |
Grade C provides higher yield and tensile strength, while Grade B offers greater elongation. Engineers select the grade according to load and site requirements.
The square profile is formed by bending flat steel through press brakes or forming rollers, followed by seam welding and sizing. Common shaft sizes include 4-inch square sections, with wall thickness specified by gauge or millimeters.
Flat Surfaces Provide Practical Mounting and Installation Options
The four flat sides of a square steel pole provide convenient surfaces for mounting lighting fixtures, signage, electrical equipment, and other accessories. They can simplify bracket installation and provide a clean appearance for urban and commercial projects.
Common mounting options include slip-fit mounts, direct arm mounts, yoke mounts, tenon adapters, and bullhorn brackets. These configurations allow fixtures to be positioned according to the project’s lighting and equipment requirements.
The square profile also provides good resistance to twisting and offers a practical structure for applications requiring stable equipment mounting.
Key Features of Square Steel Poles for Outdoor Applications
Structural Strength and Stability of Square Steel Pole Designs
A square steel pole can be designed with different shaft dimensions to match its intended application. The four-sided profile also provides clear mounting surfaces for lighting arms, signs, cameras, and other equipment.
For outdoor projects, the complete pole system should be considered together. Shaft dimensions, mounting accessories, base connections, and foundation requirements all need to work as one structure.
Steel Surface Protection Supports Long-Term Outdoor Pole Use
Surface preparation and coating quality are important for maintaining the performance of a square steel pole outdoors. Properly prepared steel allows the protective finish to bond more effectively and reduces the risk of premature coating problems.
The finish can also be selected according to the project’s appearance and environmental requirements. A galvanized steel pole is suitable for many outdoor applications, while a powder coated steel pole provides additional finish and color options.
Custom Heights, Dimensions and Wall Thicknesses for Projects
Square steel poles can be customized in height, shaft width, wall thickness, base dimensions, and mounting details. These specifications can be adjusted according to the required load, equipment, installation method, and site conditions.
Morelux supports custom square pole configurations for different projects. Customers can provide drawings or technical requirements, allowing the pole dimensions and accessories to be developed around the actual application.
Common Uses for Square Steel Poles and Structures
Square steel poles are used across lighting, security, traffic, and other outdoor infrastructure projects. Their flat-sided profile provides a practical structure for mounting different types of equipment.

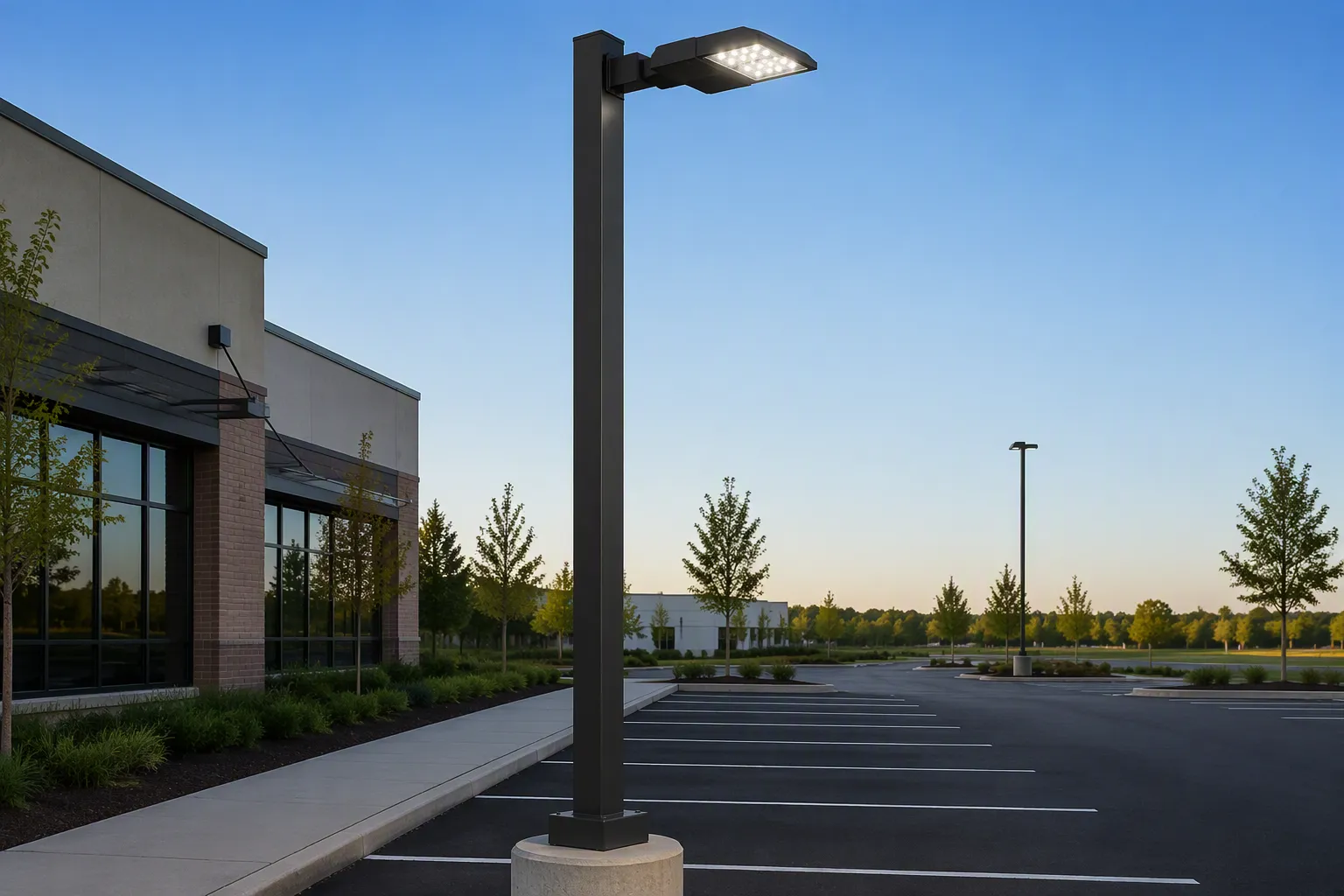

Square Steel Poles for Street and Area Lighting Applications
Square steel poles are commonly used for street lighting, parking lots, walkways, commercial sites, and area lighting. Their flat surfaces provide convenient mounting points for lighting arms and fixtures.
Straight and tapered configurations can be selected according to the project’s height, appearance, and structural requirements. The square profile also suits commercial and urban projects where a clean architectural appearance is important.
Security Camera and Traffic Infrastructure Support Applications
Square steel poles can support security cameras, traffic signals, road signs, and other roadside equipment. Flat mounting surfaces make it easier to attach brackets and position equipment at the required height and direction.
For CCTV and traffic applications, the pole can be configured with suitable brackets, access openings, and base arrangements to match the equipment and installation requirements.
Square Steel Poles for Other Outdoor Support Requirements
Square steel poles can also be used for banners, signage, site equipment, and other outdoor support applications. Their modular structure allows mounting accessories to be adapted to different project requirements.
Morelux can customize square steel poles according to application, including height, shaft dimensions, mounting arrangements, and other project-specific requirements.
Square Steel Pole Design and Manufacturing Considerations
Selecting Steel Grade Based on Structural and Site Requirements
The steel grade should match the pole’s structural requirements and installation environment. ASTM A500 Grade B and Grade C are common options, with Grade C providing higher yield strength.
Engineers can select the appropriate grade based on equipment loads, pole height, wind conditions, and project specifications. Surface protection can then be selected according to the outdoor environment.
Determining Pole Dimensions Based on Loads and Wind Conditions
Square pole dimensions are determined by the required structural performance. Engineers consider shaft width, wall thickness, pole height, equipment arrangement, and foundation connection as part of the overall design.
A larger shaft or thicker wall may be required for taller poles or heavier equipment. The final dimensions should be verified through structural calculations rather than selected from height alone.
Welding and Fabrication Processes for Consistent Pole Quality
Fabrication accuracy is important for maintaining a consistent square steel pole profile. Steel is cut and formed to the specified dimensions before the longitudinal seam is welded.
Controlled welding helps maintain joint integrity and shaft alignment. After welding, the pole can be ground, inspected, and prepared for surface treatment. CNC cutting and automated production processes can further improve dimensional consistency across custom orders.
Morelux manufactures square steel poles using controlled fabrication and welding processes to meet project-specific dimensions and specifications.
Our Square Steel Pole Manufacturing and Customization Support
Morelux supports custom square steel pole projects from engineering review to manufacturing and finishing. The process can be adapted to different lighting, infrastructure, and outdoor support requirements.
Engineering Support for Square Pole Design and Load Requirements
Morelux engineers review project specifications before production, including pole dimensions, equipment loads, wind requirements, and installation conditions. The team can provide design drawings, structural calculations, and wind load analysis to support project planning.
Base plates, anchor bolts, and mounting details can also be developed as part of the overall pole design, helping ensure the finished structure matches the specified installation requirements.
Custom Manufacturing for Different Heights, Dimensions and Uses
Morelux manufactures square steel poles according to project-specific requirements. Height, shaft dimensions, wall thickness, mounting arrangements, and accessories can be adjusted for different applications.
Customers can provide drawings or technical specifications as a starting point. Morelux then develops the square pole configuration around the intended use, whether for lighting, CCTV, signage, or other infrastructure projects.
Surface Treatment and Quality Control for Long-Term Outdoor Use
Morelux provides surface treatment options including hot-dip galvanizing, powder coating, and duplex coating. The selected finish can be matched to the installation environment and appearance requirements.
Quality checks are carried out during production to verify dimensions, welds, surface condition, and finished appearance. This helps maintain consistent quality across custom square steel pole orders.
FAQs About Square Steel Poles and Outdoor Applications
What Is a Square Pole Commonly Used for in Outdoor Projects?
Square poles are commonly used for street lighting, parking lot lighting, CCTV, traffic signals, road signs, and other outdoor infrastructure. They can also support banners, equipment, and other applications where a stable mounting surface is useful.
What Are the Advantages of Using a Square Steel Pole?
A square steel pole provides flat mounting surfaces for fixtures, brackets, signs, and other equipment. Its four-sided profile also offers a clean architectural appearance, making it suitable for commercial, urban, and infrastructure projects.
How Does a Square Pole Differ From a Round Steel Pole?
The main difference is the shaft profile. A square steel pole has four flat sides that simplify equipment mounting, while a round steel pole has a circular profile that is commonly used for general lighting and infrastructure applications.
Can Square Steel Poles Be Customized for Different Applications?
Yes. Square steel poles can be customized for height, shaft dimensions, wall thickness, mounting arrangements, base details, and accessories. Morelux can develop custom configurations according to project drawings, equipment requirements, and installation conditions.
How Are Square Steel Poles Protected Against Outdoor Corrosion?
Square steel poles can be protected with hot-dip galvanizing, powder coating, or a duplex coating system. The appropriate finish depends on the installation environment, expected exposure, and required appearance.
